How to Jailbreak iPhone 3G 3.0 firmware using Redsnow for windows/mac

by Rohit on June 20, 2009

(GUYS ULTRASN0W the unlock tool for iPhone 3G 3.0 is out!!!!.. First jailbreak your iPhone using the following steps in this post and once you are done jailbreaking head to the tutorial on how to unlock your iPhone 3G 3.0 using ultrasn0w – Click here for unlock tutorial )

Wohooo Jailbreak tool for windows is finally out!!!Its redsn0w. Please Note: This works even on the MAC.

1) Restore your iPhone OS to 3.0 firmware by using itunes 8.2. Here is the link to 3.0 firmware ipsw file. Once you are done downloading it, hold shift and click on restore from your iTunes (mac users: alt/option key + click on restore) and navigate to the ipsw file you just downloaded in order to restore your iPhone to 3.0 firmware. (Note: Use firefox/internet explorer and not safari to download the ipsw file, if not it will be downloaded as a ZIP file instead of IPSW)

2) Download Redsn0w (jailbreaking tool for windows) from any of the windows links on http://blog.iphone-dev.org/. I used

http://72.14.179.250/Downloads/redsn0w-win_0.7.1.zip.

Mac users download Redsnow from here:

http://rapidshare.com/files/247149113/redsn0w-mac_0.7.2.zip

3) Once you are done downloading, launch it and you will get the following screen. Now browse to the Original iPhone firmware OS 3.0 .ipsw file. If you haven’t already got it, you can download it from here. (Note: iPhone 2G users please check below for the ipsw link )

4) Redsn0w then checks if the .ipsw is valid. Click next.

5) Now redsn0w will automatically patch the original file. Click next when done.

6) i) On the following screen Check on Install Cydia option to jailbreak .

ii)Check on “Unlock” ONLY IF you are an iPhone 2G user to unlock.

(Reminder : iPhone 3g users please check on ONLY “install cydia” option)


7) On the following screen iPhone 2g users can provide the path to bl39.bin and bl46.bin files. iPhone 3g users press next and skip this step. (NOTE: iPhone 2G users please find the bl39.bin and bl46.bin files below)

8) On the following screen make sure that your iPhone is PLUGGED IN to the computer AND switched OFF and click “Next”.

9) Now the part where you have to pay rapt attention: On the next screen you will be presented with a set of instructions. Follow them carefully:

i) Hold “Power” button for 2 seconds

ii)Then while holding the Power button, you will now have to hold Home button too for 10 seconds.

iii)Then release Power button but keep holding Home button for about 30 seconds i.e till the installation begins.

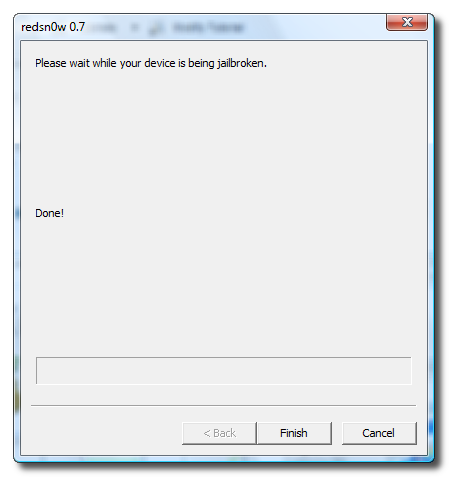

10) The Jailbreak process will now begin. Once it’s done, the iPhone will reboot on its own and you will find cydia on it.

11) Congrats you have just jailbroken your dear iPhone :)


IMPORTANT NOTE FOR iPhone 2G USERS:

Please use this ipsw file in step 3:

http://appldnld.apple.com.edgesuite.net/content.info.apple.com/iPhone/061-6580.20090617.XsP76/iPhone1,1_3.0_7A341_Restore.ipsw

You will also need the following bootloader files in step 7

BL 3.9 : http://iphonefreakz.com/firmware/BL-39.bin
BL 4.6 : http://iphonefreakz.com/firmware/BL-46.bin

IMPORTANT NOTE FOR WINDOWS 7 USERS : I tried jailbreak on WINDOWS 7 but redsn0w kept crashing. So I ran it in compatibility mode for windows xp and then ran it as an administrator. It worked!. Here’s how you do it

i) Right Click on Redsnow.exe

ii) Click on Properties

iii )Switch to Compatibility tab on the top.

iv) Check ” Run this program in compatibility mode for: Windows XP ”

v) Start the application by right clicking on redsn0w. exe file and click on run as administrator
